Horizontal Centrifugal/chemical Process Pumps

FLOW Up To 250 m3/hr
HEAD Up To 150 Mtrs
TEMPERATURE Max. 200 Deg.
PRESSURE Max. 16 bar
SPEED Max. 3600 rpm
MOC CI / CS / SS
IMPELLER CLOSED / SEMI OPEN / OPEN
DISCHARGE TOP / SIDE
SEALING GLAND / MECHANICAL SHAFT SEAL / QUENCHED SHAFT
FLANGES ISO 7005 PN 16 / 150 lbs ANSI B 16.5
MEDIA EDIBLE OIL/SOLVENTS/HOT WATER/CHEMICALS ETC.
APPLICATION FOOD / PHARMA / CHEMICALS / REFINERIES / WATER TREATMENT
SILENT FEATURES Design – High Efficient, Standardize & modular, easy maintenance

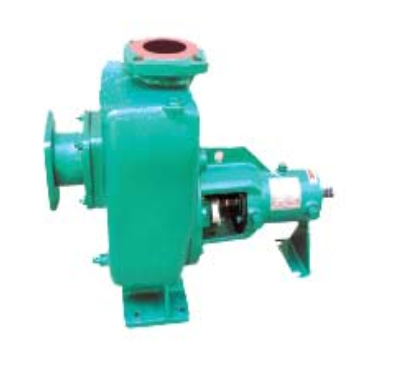

Self Priming Pumps

FLOW Up To 60 m3/hr
HEAD Up To 50 Mtrs
TEMPERATURE Max. 200 Deg.
PRESSURE Max. 8 bar
SPEED Max. 3600 rpm
MOC CI
IMPELLER CLOSED / SEMI OPEN
DISCHARGE TOP / SIDE
SEALING GLAND
FLANGES ASA 150 / SCREWED
MEDIA EDIBLE OIL/SOLVENTS/CHEMICALS ETC.
APPLICATION FOOD / PHARMA / CHEMICALS / REFINERIES / WATER TREATMENT
SILENT FEATURES Design – High Efficient, Standardize & modular, easy maintenance

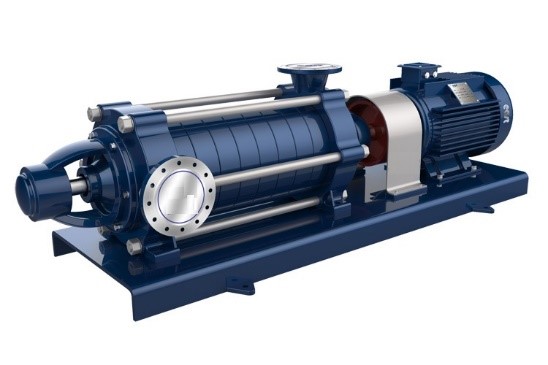

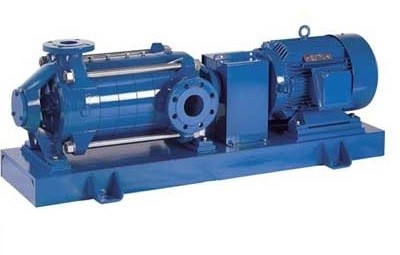

Horizontal / Vertical Multistage Pumps

FLOW Up To 100 m3/hr
HEAD Up To 300 Mtrs
TEMPERATURE Max. 120 Deg.
PRESSURE Max. 40 bar
SPEED Max. 3600 rpm
MOC CI/CS
IMPELLER STD.
DISCHARGE TOP / SIDE
SEALING GLAND/ MECHANICAL SHAFT SEAL
FLANGES ASA 150
MEDIA EDIBLE OIL/SOLVENTS/CHEMICALS ETC.
APPLICATION FOOD / PHARMA / CHEMICALS / REFINERIES / WATER TREATMENT
SILENT FEATURES Design – High Efficient, Standardize & modular, easy maintenance

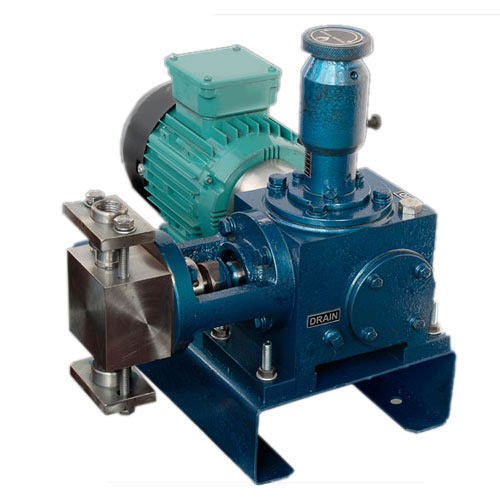

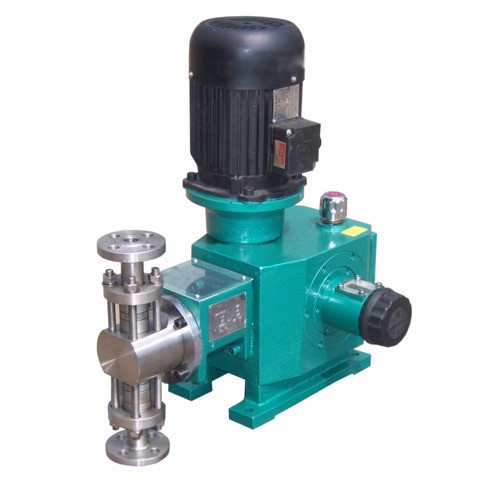

Dosing Pumps

FLOW Up To 3000 LPH
HEAD Up To 50 Mtrs
TEMPERATURE Max. 120 Deg.
PRESSURE Max. 250 bar
SPEED Max. 3600 rpm
MOC SS/CS
TYPE PLUNGER / DIAPHRAGM
DISCHARGE NA
SEALING NA
FLANGES ASA 150
MEDIA ACIDS/CHEMICALS ETC.
APPLICATION FOOD / PHARMA / CHEMICALS / REFINERIES / WATER TREATMENT
SILENT FEATURES Design – High Efficient, Standardize & modular, easy maintenance

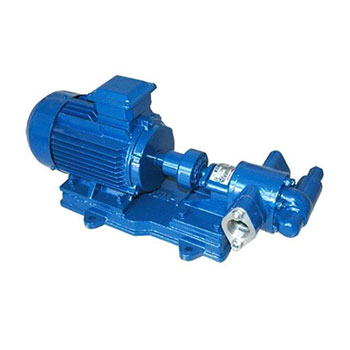

Gear Pumps

FLOW Up To 30 m3/hr
HEAD Up To 100 Mtrs
TEMPERATURE Max. 200 Deg.
PRESSURE Max. 10 bar
SPEED Max. 3600 rpm
MOC CI / CS / Alloy 20
VISCOSITY Max. 5000 mPass
DISCHARGE NA
SEALING GLAND
FLANGES ASA 150
MEDIA SOAP / GUMS / VISCOS LIQUIDS ETC.
APPLICATION FOOD / PHARMA / CHEMICALS / REFINERIES / WATER TREATMENT
SILENT FEATURES Design – High Efficient, Standardize & modular, easy maintenance

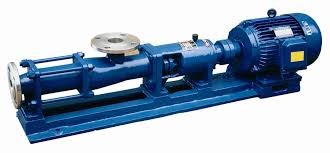

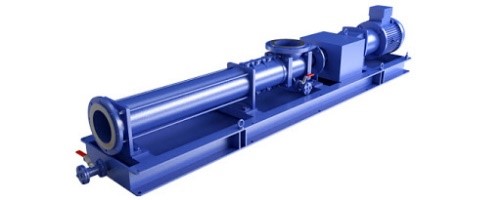

Screw Pumps

FLOW Up To 30 m3/hr
HEAD Up To 100 Mtrs
TEMPERATURE Max. 120 Deg.
PRESSURE Max. 16 bar
SPEED Max. 3600 rpm
MOC BODY SS / CS / CS
MOC STATOR EPDM / NITRILE / RUBBER / FLUROELASTOMER
DISCHARGE NA
SEALING NA
FLANGES ASA 150
MEDIA SOAP / GUMS / VISCOS LIQUIDS ETC.
APPLICATION FOOD / PHARMA / CHEMICALS / REFINERIES / WATER TREATMENT
SILENT FEATURES Design – High Efficient, Standardize & modular, easy maintenance
